Last time we went through all the parts you will need to build your PC. Now it’s time to put them all together! We’ll be physically installing and connecting all the components, right up to the point where you turn the damn thing on.

You will need:

Everything from last time! Which, to jog your memory, is—

Optionally, you may have acquired:

If you bought all your components brand new, they should have come with all the screws and cables you need. Some components, such as PSUs, may also come with handy cable ties, twisty ties or velcro strips, to help keep your cables neat and tidy and out of the way. However, it’s always worth getting your hands on extras. Also keep hold of any instructions or manuals that came with your components!

Finally, you will need:

  • a screwdriver — a standard crosshead type will do the job
  • (optional) another PC/phone/tablet for looking stuff up if you get stuck
  • at least two cups of tea. Not because it will take a long time, but because you will forget about the first one and it will go cold.
Essentials.

Essentials.

For this assembly, I’m going to use pretty standard components, installed in pretty standard ways. However, all self-built PCs are special little snowflakes just like their builders, which means some of your bits and bobs will be slightly different shapes or sizes from mine. If your stuff looks radically different, don’t worry: even if their instructions are wildly confusing or in an actual foreign language, no problem is farther than a Google away.

And of course don’t be afraid to ask questions in the comments!

I feel like this is becoming a body-positivity workshop instead of a PC building class, so let’s get started.




1. Getting started with the motherboard

At the rear of the case, you’ll see some screws around the edges that are keeping the side/top attached. Whip those screws out, and slide off whatever comes loose: in most cases, one or both of the side panels of the case will slide out. Sometimes, both sides and the top will come off in one big piece.

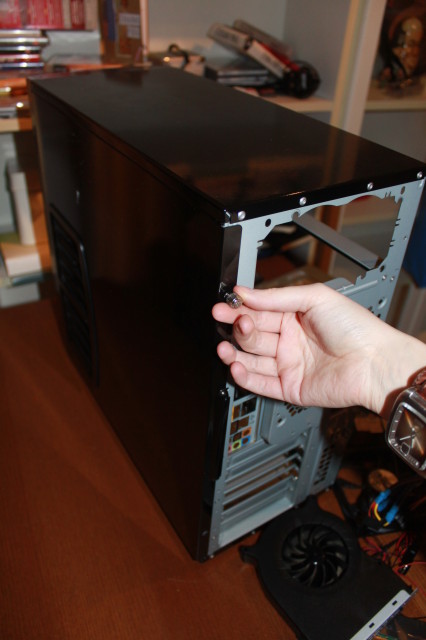

Unscrewing the sides

Unscrewing the sides

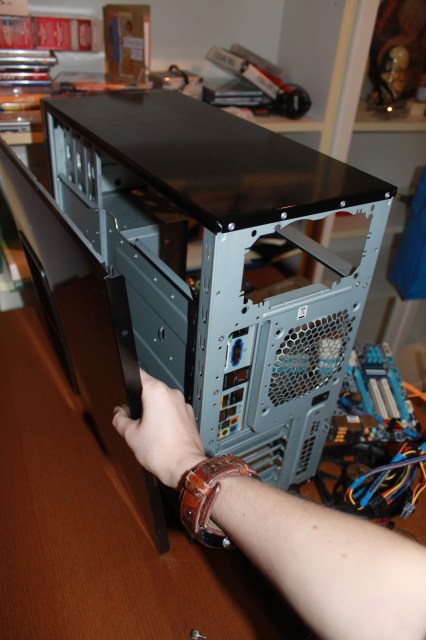

Removing the sides.

Removing the sides.

You’ll notice some cables inside, that appear to lead to the front of the case. Tuck those to one side for now.

2-03a_empty_case_side

Lay the case down flat, with the metal backboard at the bottom. You’ll see the metal dotted with screw-holes. Some of these screw-holes will need to be fitted with motherboard standoffs — a type of screw that will allow you to attach the motherboard, raised at a safe distance from the metal backboard, so the two won’t make contact and short-circuit the motherboard.

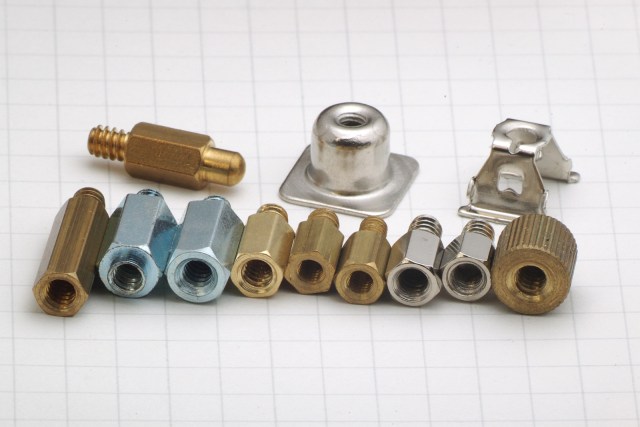

standoffs

Different kinds of standoffs.

Some motherboards may come with the standoffs already soldered into place, but it’s common that they’ll come loose with the rest of the screws, and you’ll have to fit them yourselves. Screw them in (or push, if they’re the peg-like variety), choosing holes at sensible positions to provide support to your motherboard.

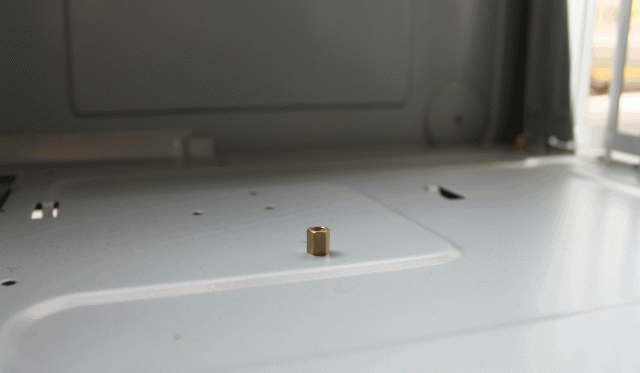

A fitted stand-off

A fitted standoff

Before we attach the motherboard to the standoffs, we’ll need to fish out and fit the I/O shield it came with.

2-04_io_shield

This thin piece of metal will help keep dust out of the case and support the ports on the motherboard. There will be an oblong hole in the back of your case. Firmly push the I/O shield into this hole from the inside, it should fit snugly.

2-04a_io_shield_install

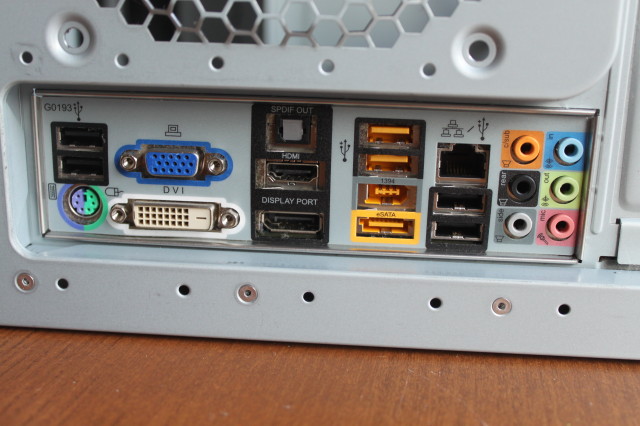

Now we can fit the motherboard, lining up all its external ports — like the USB, ethernet and monitor ports — with the appropriate holes in the I/O shield.

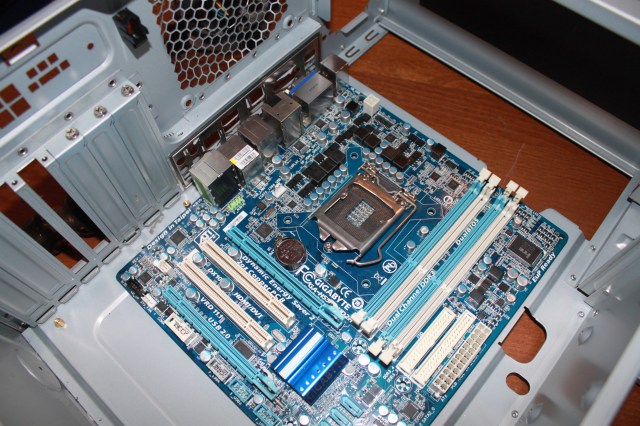

Line up the motherboard against the inside of the holes.

Line up the motherboard against the inside of the holes.



Hold the motherboard so the ports poke out through the holes.

Hold the motherboard so the ports poke out through the holes.

Gently push the motherboard until the ports are through, and you should start to see some of the screwholes in the motherboard line up with the underlying holes on the metal backboard. As soon as you’re happy that you can get the screws in comfortably, get that shit locked down. Don’t get over-excited though, because sadly not all of these holes are intended for screwing; typically four or five will line up with holes in the case, allowing you to attach the motherboard securely.

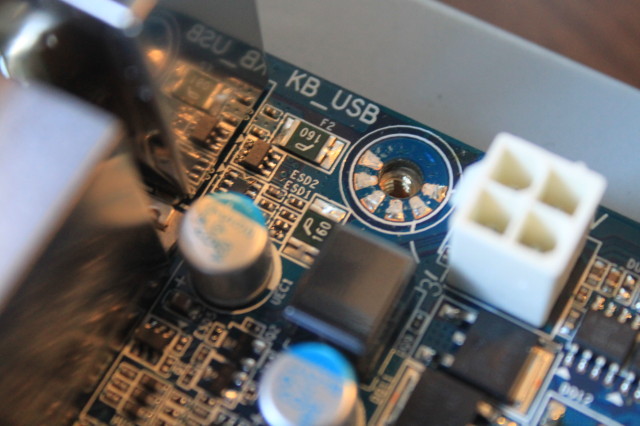

Look for where you can clearly see the threaded holes underneath.

Look for where you can clearly see the threaded holes underneath.

Once the motherboard is fitted, it’s time to start filling up all those slots with your precious goods!

1-11_motherboard_labeled




2. CPU

Find and open the CPU socket on your motherboard. There may be a plastic blank in the socket, protecting the connectors — you can remove that.

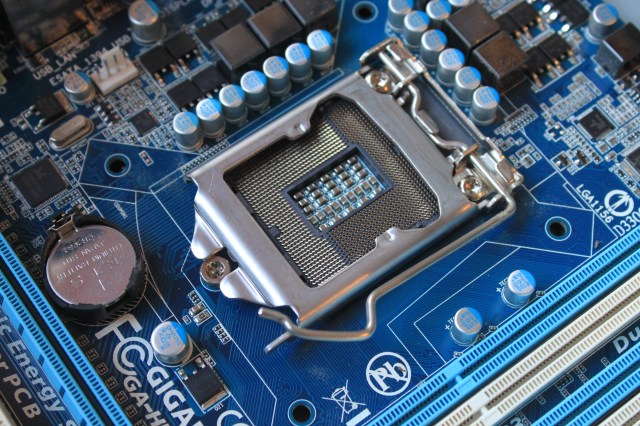

Closed.

Closed.

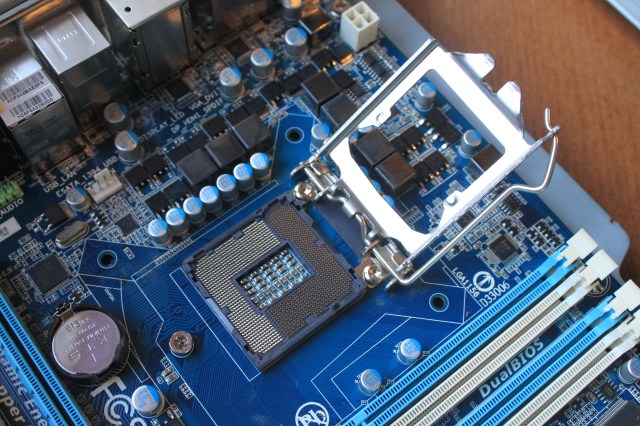

Open.

Open.

Plop your CPU in there, connector-side down. It will only fit in one orientation because of the notches on the side, and many chips have a handy arrow that will point to the bottom left corner.

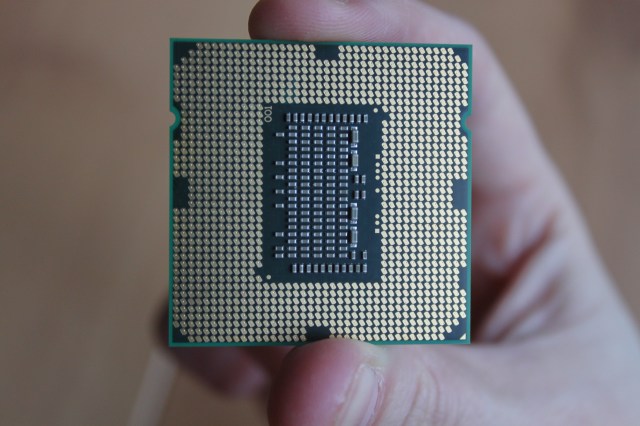

This side should be against the motherboard.

This side should be against the motherboard.

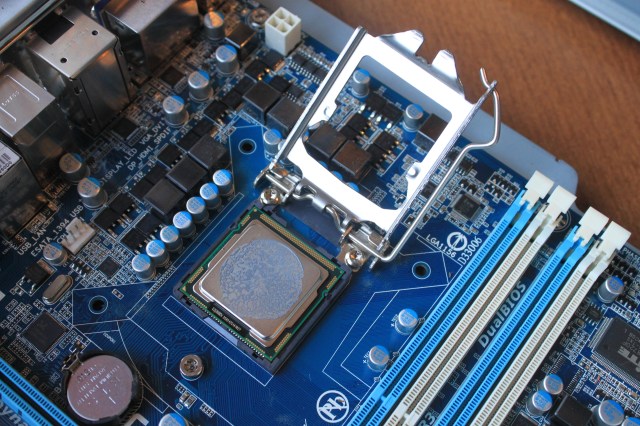

All nice and installed.

All nice and installed.

When handling the CPU (or any other component with exposed metal connectors) try your hardest to keep your fingers off the connectors and handle only from the side. You want to avoid scratching the metal or getting any dirt on it, which can damage or completely break the connection.

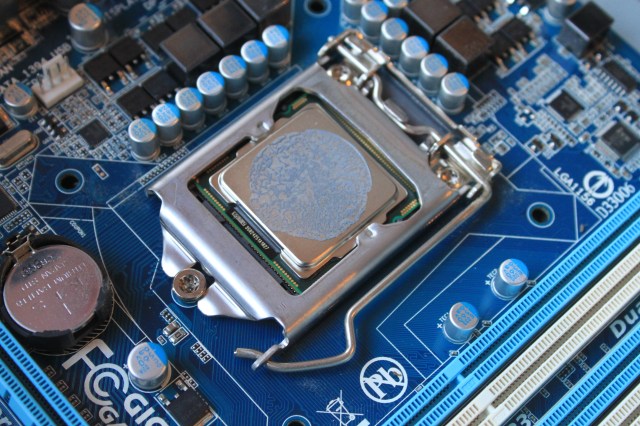

Once the CPU is snug in the socket — it shouldn’t wiggle around at all — pull the lever down and lock it in.

Shit is now on lock.

Shit is now on lock.


3. CPU Heat Sink and Fan

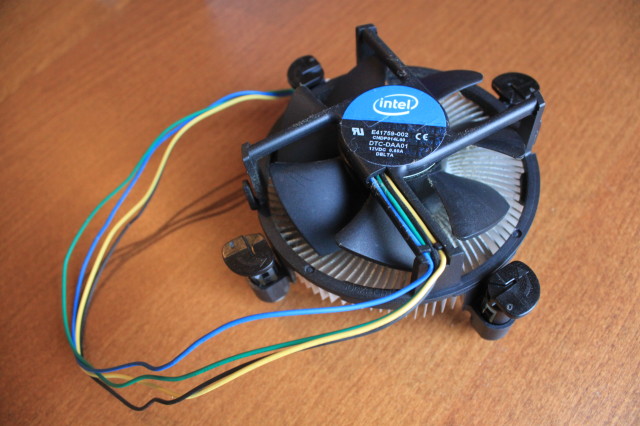

Next, we’re going to install the fan and heat sink that sits on top of the CPU to keep it cool.

Stock Intel cooler

Stock Intel cooler

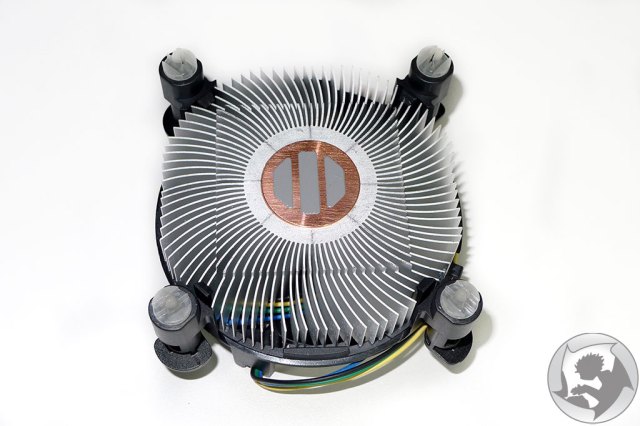

To make sure heat gets conducted efficiently from the CPU to the heat sink, it’s important to have a thin layer of thermal paste between the two.

Stock heat sinks (i.e. ones that come bundled with the CPU) usually come with a square/circle of thermal paste applied to the underside — check yours to see if it has some.

If your heat sink doesn’t have any thermal paste already, you’ll have to apply it yourself — it’s much easier to apply it to the top of the CPU once it’s in its socket.

Check the instructions specific to your paste to find out exactly how much to use because compounds will vary in thickness. Generally, you’ll need only a tiny amount, about half a pea size. Splodge the paste onto the middle of the exposed side of the CPU. You can either spread it out into a thin layer, using some rigid plastic like an old credit card, or just rely on the weight of your heatsink to spread it out once it’s on. Have a look here for a guide with pictures.

CPU heat sinks and fans tend to be one of the components that vary the most in their design and method of installation. I’m going to be installing the stock heat sink and fan that came with my Intel i5 CPU, and it’s really really easy to install. However, others can be a real pain, often involving tricky levering action and a bit of force. I do recommend Googling for pictures or videos if yours looks nothing like this.

The current standard Intel model has four legs, each with a plastic peg that attaches to the motherboard to lock it in place. Sit the unit on top of the CPU, aligning the pegs with the four holes around the CPU socket.

2-15_CPU_fan_placement

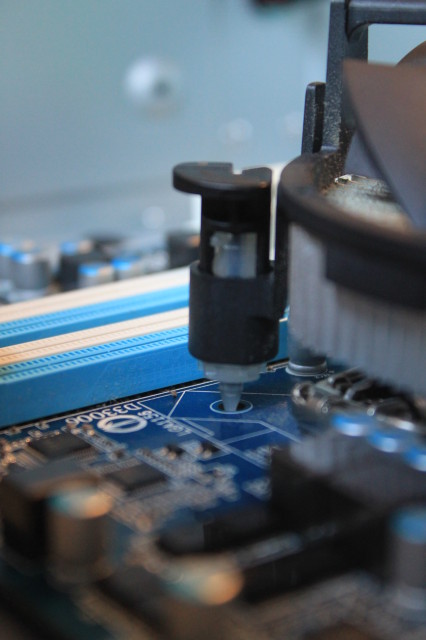

The peg in the hole.

The peg in the hole.

Push down on the top of the plastic legs to push the pegs through the holes, then twist the legs anti-clockwise to lock them.

The unit should be securely fastened — if it moves when you wiggle it, that means at least one of the legs hasn’t been fastened properly, so give it another go.

Once the heat sink and fan are nice and tight, you’ll need to connect the cable dangling from it to a socket on the motherboard in order to power the fan. If you’ve got a fancy heat sink that requires no fan, then you can skip this bit.

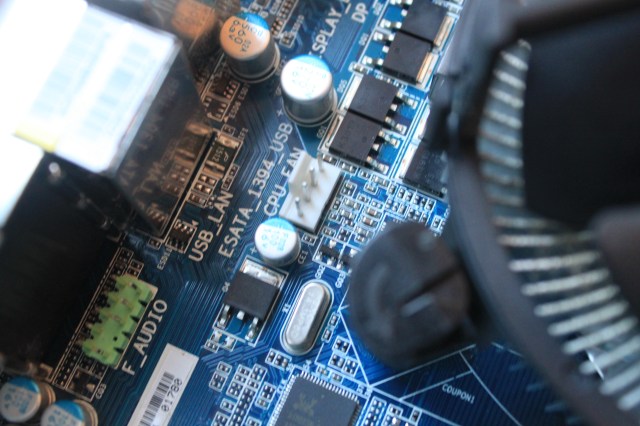

Look for a small four-pin connector near the CPU socket, which may be handily labelled “CPU fan” and plug in the fan cable.

2-17_CPU_fan_connector_socket
2-18_CPU_fan_and_cable


3. RAM

RAM sockets are typically the longest on the motherboard, and each socket has a clip at either end. For each stick of RAM you need to install, pull back both clips and line up the notch in your RAM with the notch in your RAM socket. It will only fit one way. Like with the CPU, ensure you’re only handling the RAM from the side or top, avoiding skin contact with the metal connectors.

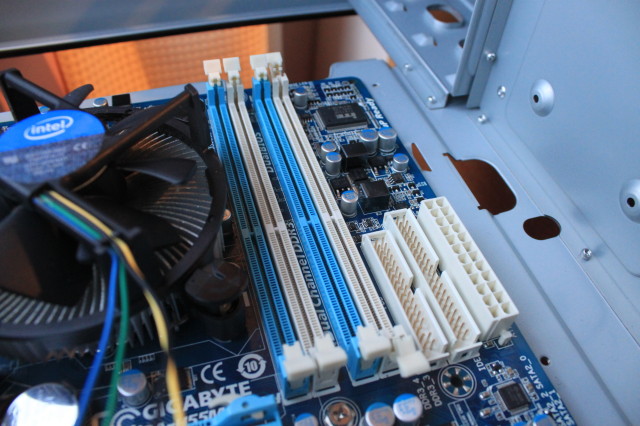

Empty RAM slots.

Empty RAM slots.

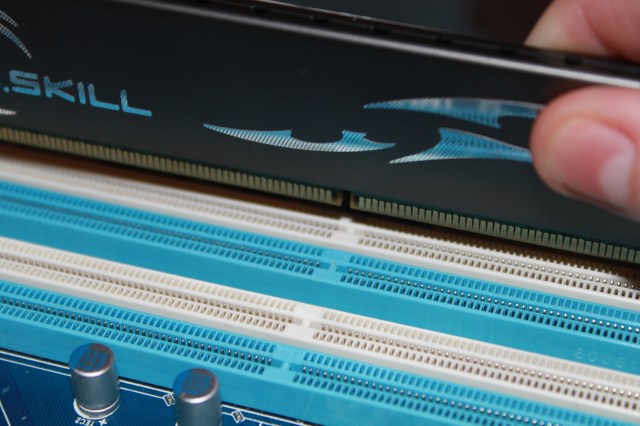

Line up the notches.

Line up the notches.

Push the stick down into the socket. If it’s fitting correctly, the downwards motion will push the end-clips back in. Repeat this for each RAM stick you have.

2-21_RAM_slots_full




4. Case connectors

Before you start filling the case up with any more hardware, it’s a good time to attach any of those loose cables you saw when you opened up the case for the first time.

Each of those cables will link to lights, buttons or sockets found on the front of the case, most importantly, the power button that will let you turn the PC on!

Look at the connectors on the end of the cable, and they should be printed with what they link to.

2-22_case_cable_connectors

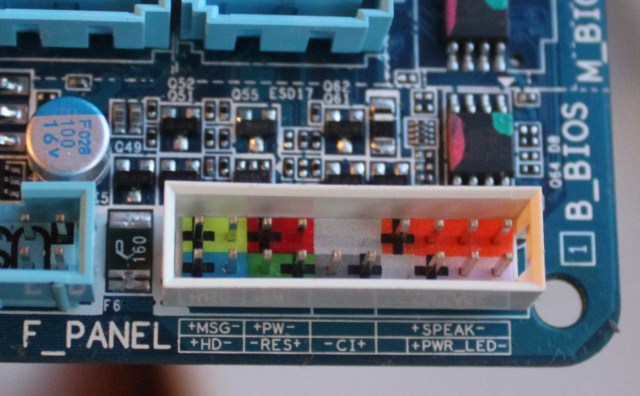

Usually, there will be one big socket for all of these front panel connectors, with lots of pins, and you need to identify the right pins for each of the cables. The pins should be labelled right by the socket, and will roughly match up to what’s written on the cable connectors.

You’ll be able to find a diagram with fuller labels in your motherboard’s instruction manual.

2-23_front_panel_socket_angled
2-24_front_panel_socket_topdown

There may be further cables coming out from the front panel to hook up USB and other ports. You should be able to find sockets for these on the motherboard with “USB” in the label.




5. GFX / Sound Card / Other PCIe Cards

The last bits of hardware that you will want to install directly into the motherboard will be any graphics cards, sound cards, or other cards that will consume PCIe slots. If you don’t have any of these cards, and are relying on the graphics and sound built into the motherboard, you can skip over this bit!

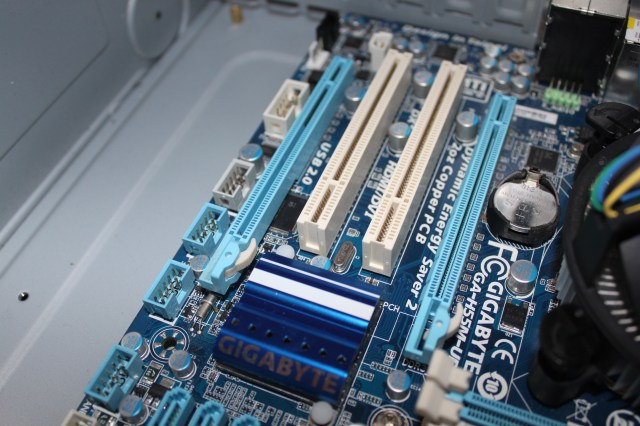

The longer blue slots are the PCIe slots, which will take modern graphics cards. The shorter ones are older generations of PCI.

The longer blue slots are the PCIe slots, which will take modern graphics cards. The shorter ones are older generations of PCI.

A quick word of warning: many graphics cards are pretty bulky and, once installed, can make it hard to access some of the sockets and other components on the motherboard. If you’re worried that’s going to be a problem, you may want to skip installing any graphics cards for now, and come back to it once you’ve got everything else connected.

Your graphics card will have ports on the back of it for connecting to monitors etc. In order to fit the cards and get access to those ports, you’ll need to remove the metal blanking plates from the rear of the case, which just requires removing a single screw. Many graphics cards are big beasts that will require removing two plates.

2-26_rear_blanking_plates

Slip the card into your chosen socket — angle it back slightly then push the rest of the card down, ensuring the metal lip stays within the case. Once it’s snug, fix it to the back of the case, using the same place/screw that was holding the blanking plate.

2-27_gfx_install
2-28_gfx_screw

If you have Crossfire or SLI graphics cards (i.e. two separate graphics cards that can be connected together for more oomph), you’ll need to position both cards next to each other, so that you can lasso them together with a bridging card/cable.

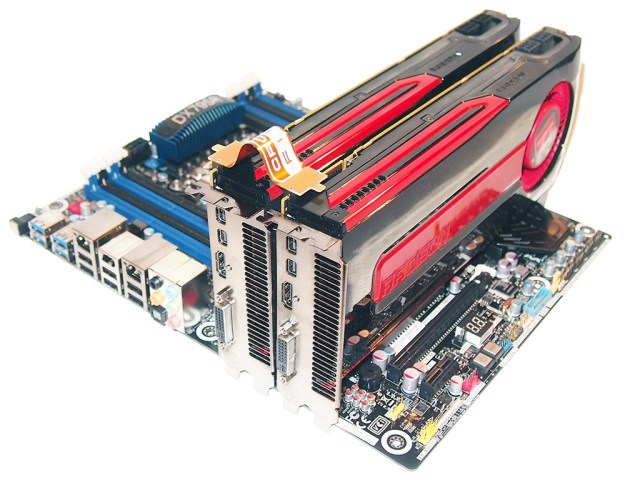

Two Crossfire graphics cards connected together, via pcworld.com

Two Crossfire graphics cards connected together, via pcworld.com

Rinse and repeat for any more PCIe cards you have. If you realise that you removed too many blanking plates, then be sure to re-attach them — leaving any holes can muck up the airflow and cooling inside the case, as well as inviting dust and literal bugs inside.




6. Hard Drive(s)

The rest of the components we’re going to install will all have homes elsewhere in the case. Hard drives typically live in “bays” — metal shelves found towards the front of the case, that can be oriented horizontally or vertically

2-29_empty_case_labelled

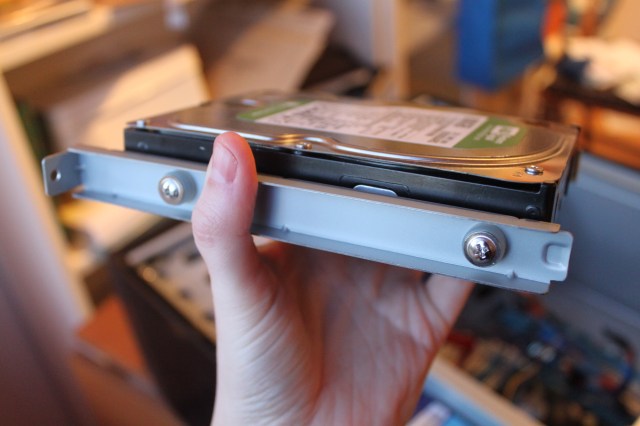

Usually, you slide your hard drive straight into these bays and screw them directly to the metal sides, two screws on each side. My case, though, has fancy noise-dampening rails that attach to the drive, which you then slide into the bay.

Fancy.

Fancy.

2-31_HDD_install

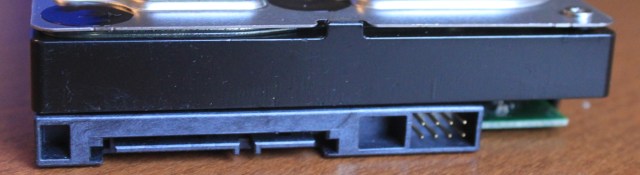

Whatever way your drive is installed, you want to make sure that you can see the data and power connectors on the back of it, so you can connect it!

Make sure you can see these blighters.

Make sure you can see these blighters.

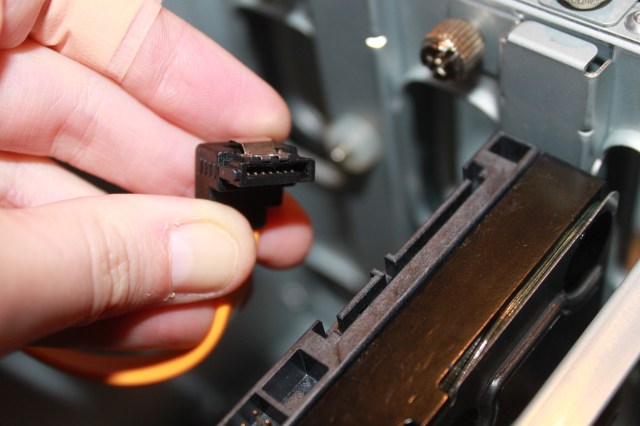

For a typical SATA drive like this, connect it to the motherboard using a SATA cable that has the same L-shaped connector at either end. You should find several SATA sockets grouped together on the motherboard, quite easy to spot because of their unique shape.

2-33_hdd_sata
2-34_mobo_sata

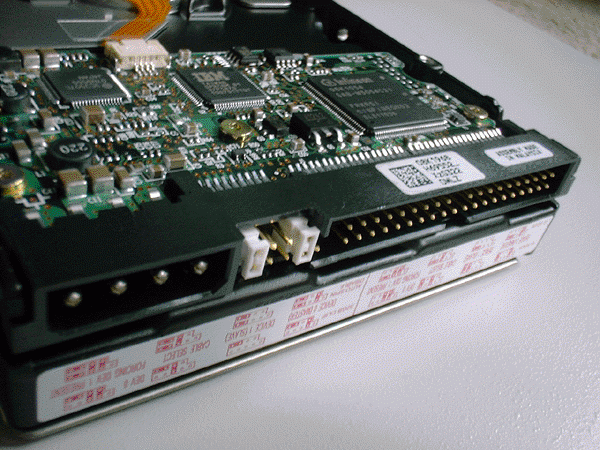

Side-note: if you’re installing an old-school IDE drive, it will have a ribbon-style cable with a coloured line on one edge. When you attach the cable to the drive, make sure the coloured line is closest to the 4-pin power connector. If you’re installing multiple IDE drives using the same ribbon cable, you’ll also need to attach jumpers plugs to the rear of the drive, to designate which drive is the “master” and which is the “slave,” which is not nearly as kinky and exciting as it sounds.

Ye olde hard drive via pchardware.co.uk

Ye olde hard drive via pchardware.co.uk

Screw in and connect any more hard drives you have. If you have spare drive bays in your case, you may wish to space your hard drives apart to keep them cooler.




7. Optical Drive(s)

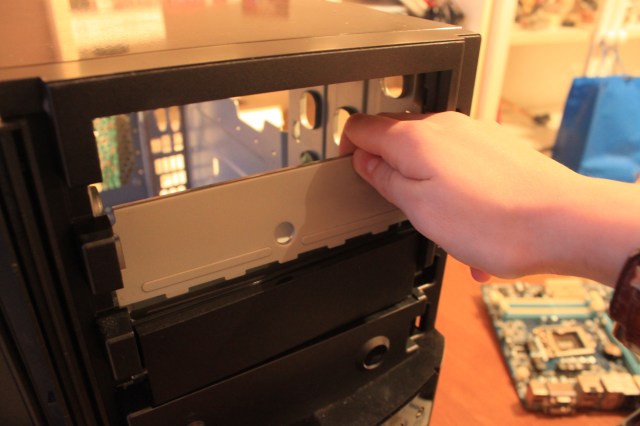

Optical drives are fitted in much the same way as hard drives, although they will always lay horizontally. You’ll also need to remove a blanking plate from the front of the case, so you have access to put discs into the drive. Front blanking plates rarely have screws in them; they should either be made of plastic that you can poke out, or metal that you can twist off. In my case: both.

2-36_front_blanking_plates

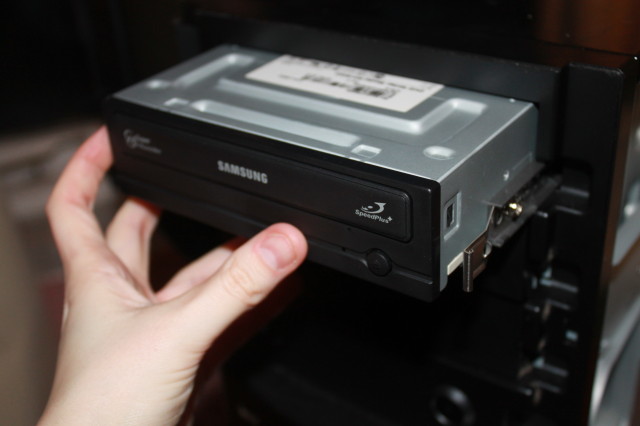

Depending on your case design, you’ll either have to slide the drive in from inside, or through the front of the case. Again, I’ve got some rails to attach to the side of my drive, which let me slide it in through the front until it secures with a satisfying click. More typically, you’ll just screw the drive straight to the sides of the bay.

2-37_optical_drive_rails

You can leave the PC lay flat for this, I just put it upright for a better view.

You can leave the PC laying flat for this, I just put it upright for a better view.

Install any more drives you have, and connect all of them to the motherboard. Optical drives use the same power/data cables as hard drives, so you’ll want to use SATA cables (or, rarely these days, an IDE cable).




8. PSU

That’s almost everything we want to put into our PC, so now it’s time to get power to it all. Time to install the PSU and its scraggly bunch of cables!

2-39_PSU_overhead

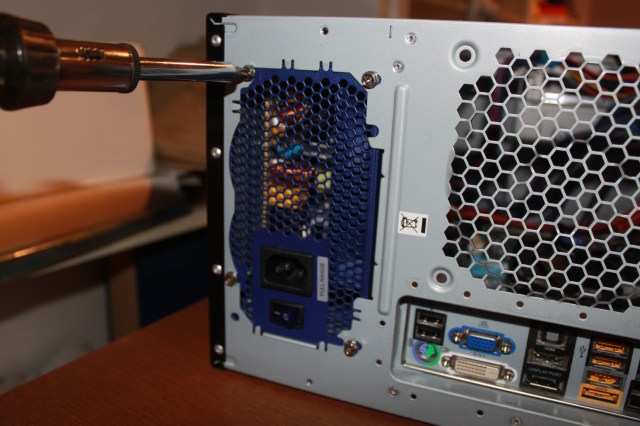

The PSU typically lives at the top-rear of the case. You’ll find a big hole in the back of the case that it sits behind, and possibly a small metal lip or shelf for it to rest on. It may take some maneouvering to get your PSU into the right position, but it’s easy enough to affix, with 4 or so screws at the back.

2-40_PSU_placement
2-41_PSU_install

Looking at the bundle of cables, you’ll notice that there are all sorts of connectors mixed up in there, and we need to fish out the right ones for each component.

a) Motherboard

Firstly, you’ll want to find the rectangular ATX main power connector, which will either come as one whole 24-pin connector, or a 20-pin version with an extra 4-pin square dangling off the side like this:

2-42_mobo_24_pin_connector

Locate the socket(s) for this, somewhere around the edge of the motherboard, and plug the connector in — it should only fit in one direction, as should all of the power connectors we’ll be talking about.

2-43_mobo_24_pin_socket_empty
2-44_mobo_24_pin_inserted

Secondly, dig out the 12v connector for powering the CPU, most commonly a square, 4-pin connector. This will go into another socket, usually somewhere near the CPU.

2-45_mobo_4_pin_socket (2)
2-46_mobo_4_pin_inserted

Sometimes, a motherboard may use an 8-pin socket — just plug two 4-pin connectors into this, side-by-side.

Double-check your motherboard instructions to ensure you’ve got all its power connections covered.

b) Hard Drives and Optical Drives

Your PSU should have several SATA power connectors. Often you’ll find multiple plugs on the same cable, so you can connect any devices that are close to each other with one cable, slightly reducing the overall tangle.

2-47_sata_power

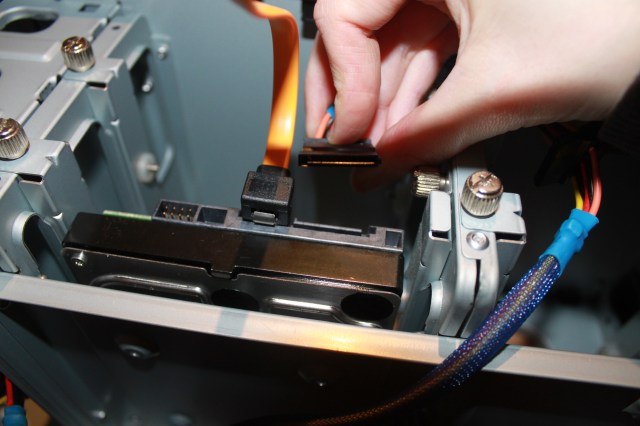

Use as many cables as you need to connect power to all of your SATA hard drives and optical drives.

2-48_hdd_power

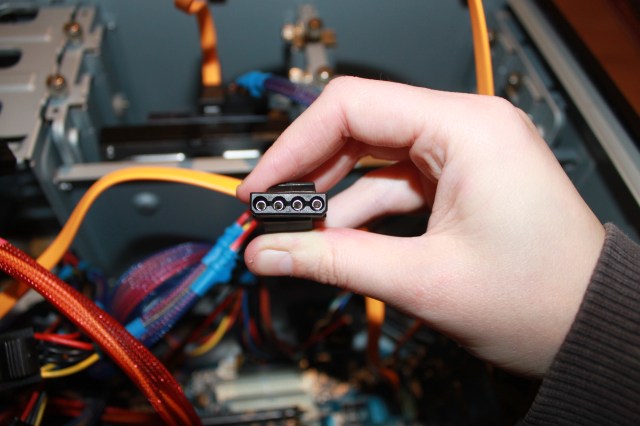

Older IDE drives use 4-pin molex connectors like this for power:

2-49_4pin_molex



c) Graphics/PCIe cards

While some graphics cards will happily draw power from the motherboard, many cards will require some extra juice from the PSU.

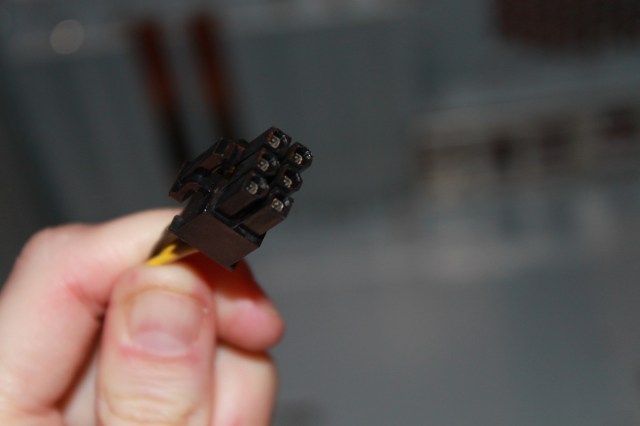

This requires one or more 6-pin (sometimes 8-pin) connectors, which will connect to a socket on the end of your graphics card(s).

2-50_gfx_6pin_socket
2-50a_6pin_PCIe_connector




9. Case fans

Finally, it’s time to install any fans that didn’t come already attached or built-in to the case.

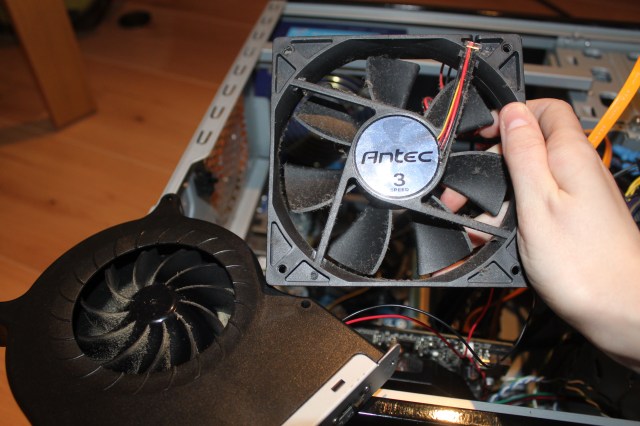

2-51_case_fans

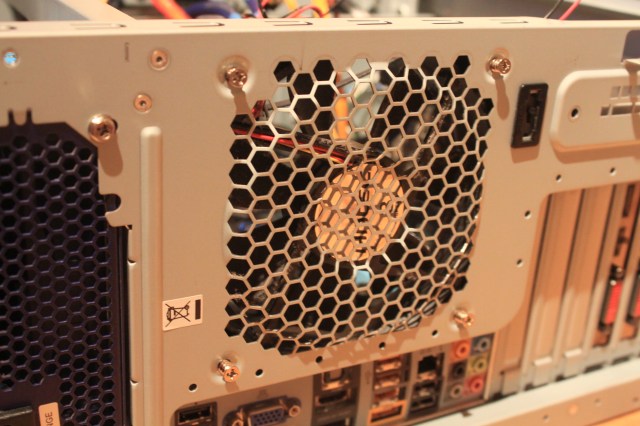

Most cases will have a grille at the back: screw the fan here, and ensure it’s facing the correct direction so hot air will get blown out of the case, and not vice versa!

2-52_case_fan_install

Some cases will also have places on the front or side to attach fans. For those fans, you want to make sure they are drawing cool air into the case. If you can’t work out which way round any of your fans should go, wait until you power on the PC and hold a piece of paper in front of them to see if they suck or blow! Just remember: suck from the front, blow out the rear.

You’ll need to get all your fans power, including any that were pre-fitted into the case. They’ll each have a 4-pin molex dangling off them somewhere, which you can connect to a PSU cable.




10. Close it back up, plug in power cable and turn it on!

If you are a responsible kind of person, you’ll want to spend a few minutes tidying all your cables, using cable ties or velcro to bundle them up. This will keep everything neat, and ensure no cables are likely to fall into a fan and get chewed up. Or you can just leave it a big mess like I do.

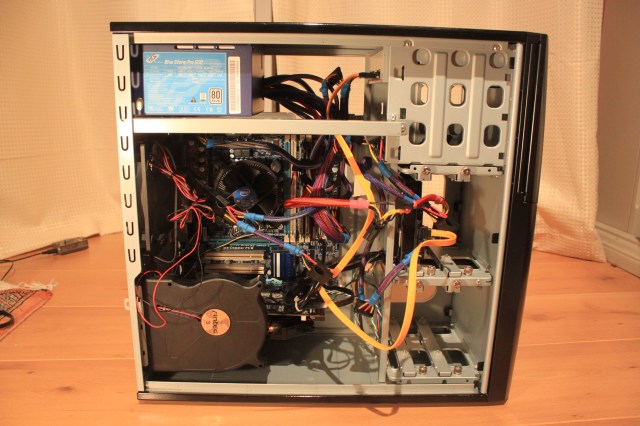

2-53_finished_side_off

Once you’ve tidied/shoved everything in, re-attach the sides of your case and root out the power cable that should have come with your PSU. If your PSU has its own switch on the back, make sure it’s off before you connect it to the mains to prevent surge damage; it’s generally good practice to have your PC plugged into a power strip with surge protection anyway.

2-54_power_cable

Once you’re plugged in, flip the PSU switch if you have one, then hit the PC power button on the front of the case. You should hear the sweet, droning sound of fans and the promising flicker of LEDs, as your creation boots into life!

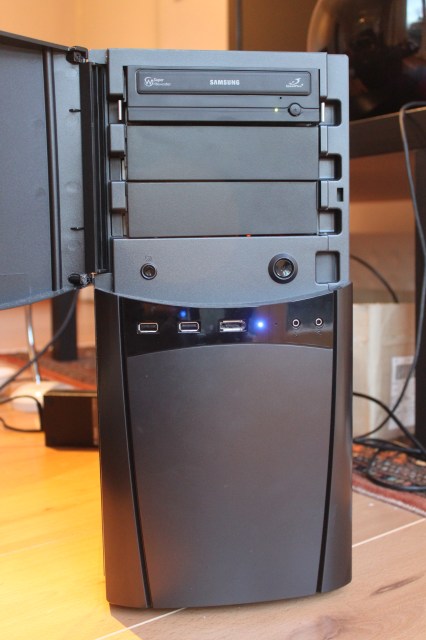

The joy of PC birth is kind of hard to capture in photographic form.

The joy of PC birth is kind of hard to capture in photographic form.

If nothing happens when you switch it on, don’t be disheartened! The most likely cause will be that something isn’t connected properly, and you’ll need to whip the case off and investigate what that might be.

Try going through checklists of common problems, and re-check your power connections and internal cabling. Helpfully (or not), there are lots of forum posts out there from people that will have experienced similar problems to you, and reputable sites like Tom’s Hardware are a good place to start.

Of course you can feel free to comment here with any problems, questions or suggestions you may have!

Next time: Booting up and installing the operating system!
